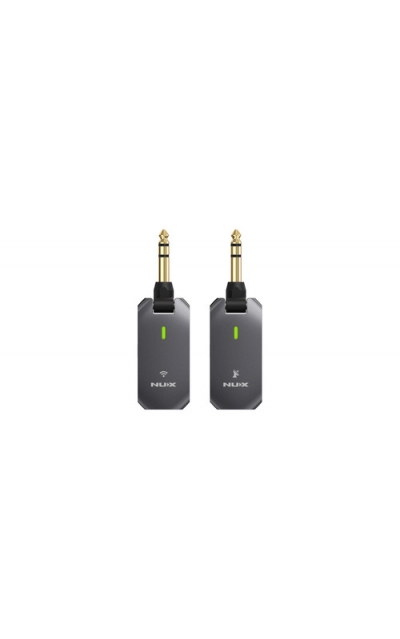

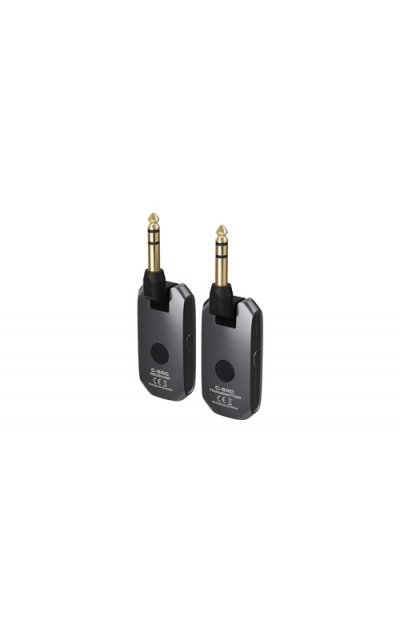

C-5RC is designed for wireless connection of electronic musical instruments with 5.8GHz frequency wireless technologies. It has the characteristics of low latency, low noise,

low interference, and high bandwidth transmission.

Simple Plug & Play

Enhanced by the latest NUX technology innovation and upgraded algorithm, C-5RC fits perfectly with all types of Electric Guitars, Acoustic-electric Guitars, Bass Guitars and Ukuleles, no matter with active or passive, piezo or magnetic pickups.

It delivers remarkable 24-bit audio quality, simple' plug in and play' operation, super-low latency (<5 ms) and a solid signal for distances up to 30 meters / 100 feet in adequate conditions.

C-5RC also comes with a portable Power Case to keep the wireless units charged – ideal design for when you are on the road.

High Performance Digital Signal

C-5RC Wireless delivers the signal on 5.8 GHz frequency range. That's a global interference-free broadcasting range you can use everywhere without a signal break.

With the 24-bit 44.1 KHz audio quality you will never experience unwanted sound degradation.

AUTOMATIC SETUP UNIQUE AUTO-MATCHING SYSTEM

Each pair of NUX C-5RC has a unique fast-matching system.

Just hold the power button to turn ON both devices, plug the transmitter to your instrument, and the receiver to your amp (or pedal, audio interface and more). It's ready to play!

Moreover, it has a useful MUTE function; just short click the transmitter's POWER button when you want to stop playing for a short time.

LONG DISTANCE & ULTRA-LOW LATENCY A NEW LEVEL

OF WIRELESS FREEDOM

NUX C-5RC has a 30 meters / 100 feet line-of-sight wireless streaming distance (environment-dependent), and it delivers the signal between the transmitter and the receiver in less than 5 milliseconds.

There's also an optional Cable Tone simulation to get your tone with the cable capacitive effect without using a cord. It makes your sound as natural as using a high-quality cable.

LONG-LASTING BATTERY AND POWER CASE STAY CHARGED,

STAY TUNED

NUX C-5RC works perfectly with active/passive electric guitar and bass, and acoustic-electric guitars with piezo or magnetic pickup.

The signal is crystal clear.

Also, the compact and light-weight design allows you to play comfortably on any guitar and bass body types, including acoustic guitars and ukuleles.

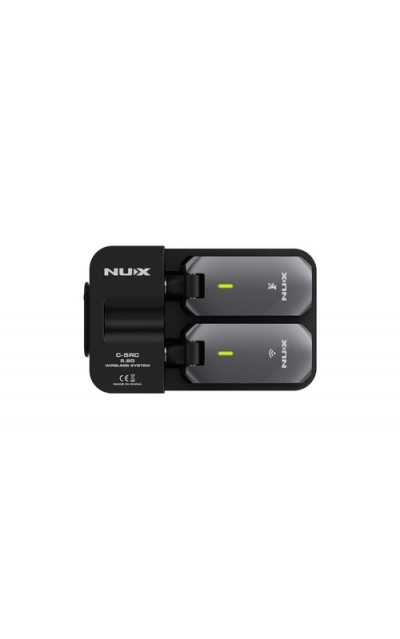

For gigging musicians, C-5RC Power Case is a perfect solution. This portable charge station provides up to 15 hours battery life and

can charge the system for approximately 3 times.

Specifications

Operating Frequency Band

5.8 GHz

Audio Quality

24-bit / 44.1 kHz

Operation Range

Up to 30 meters / 100 feet line-of-sight (environment-dependent)

Frequency Response

20 Hz – 20 kHz

Latency

Less than 5.5ms

THD+Noise

Less than 0.2% @1kHz

Auto-Sleep Mode

After 10 minutes without operation

Transmitter/Receiver Battery Capacity

500mAh / 3.7V

Transmitter/Receiver Battery Run Time

More than 4 hours

Power Case Battery Capacity

3000mAh / 3.7V

Transmitter/Receiver Size

108mm(L) x 30mm(W) x 21mm(H)

Power Case Size

132mm(L) x 93mm(W) x 50mm(H)

Weight

Power Case: 196g, Transmitter/Receiver: 34g each
