אורגנית מקצועית הכוללת 61 קלידים רגישים למגע עם רמקולים עוצמתיים מבית ימאהה
PSR-E463 is the best entry keyboard for performing various styles of music, from the latest to vinyl favorites. It has a 61-key touch response keyboard with powerful on-board speakers and easy-to-use professional features like assignable Live Control knobs, Quick Sampling, Groove Creator and USB Audio Recorder.

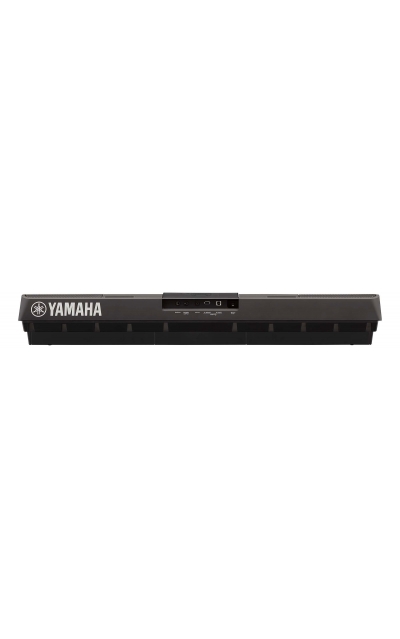

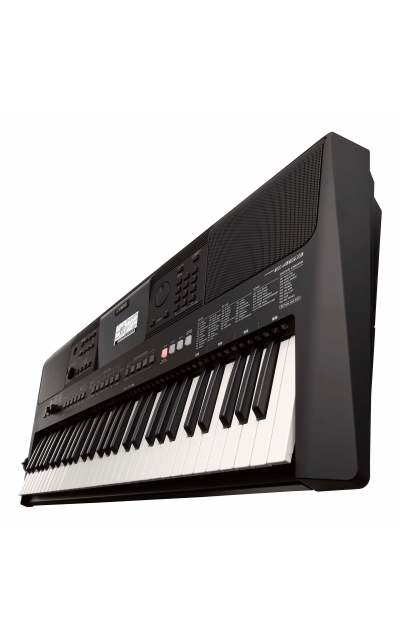

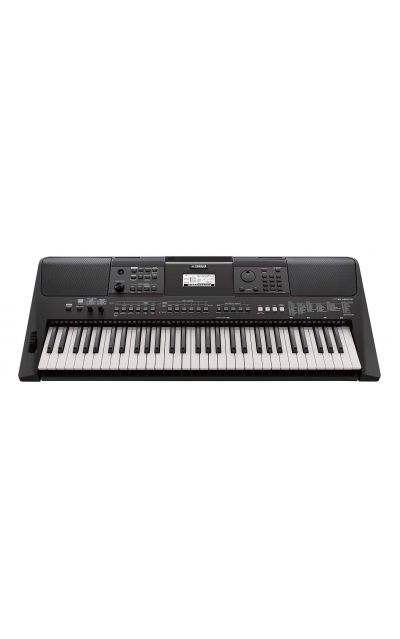

PSR-E463
Color/Finish
Body Color Black
Size/Weight
Dimensions Width 946 mm (37-1/4")
Height 139 mm (5-1/2")
Depth 404 mm (15-15/16”)
Weight Weight 6.6 kg (14 lb, 9 oz) not including batteries
Control Interface
Keyboard Number of Keys 61
Touch Response Soft, Medium, Hard, Fixed
Other Controllers Pitch Bend Yes
Control Knobs Yes
Display Type LCD (Liquid Crystal Display)
Language English
Panel Language English
Voices
Tone Generation Tone Generating Technology AWM Stereo Sampling
Polyphony Number of Polyphony (Max.) 48
Preset Number of Voices 758 (237 Panel Voices + 24 Drum/SFX kits + 40 Arpeggio + 457 XGlite voices)
Featured Voices 8 Sweet! Voices, 3 Cool! Voices, 3 Dynamic Voices
Compatibility GM Yes
XGlite Yes
Effects
Types DSP 10 types (assignable on control knobs)
Reverb 12 types
Chorus 5 types
Master EQ 6 types
Harmony 26 types
Functions Dual/Layers Yes
Split Yes
Arpeggio 150 types
Melody Suppressor Yes
Crossfade Yes (for Internal/AUX IN)
Accompaniment Styles
Preset Number of Preset Styles 235
Fingering Multi finger
Style Control ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
File Format Style File Format (SFF)
Other Features One Touch Setting (OTS) Yes
Expandability Expansion Style 10
Groove Creator
Preset Number of Groove 35
Number of Sections 5 (4 Sections + 1 Musical Climax/Ending)
Songs
Preset Number of Preset Songs 30
Recording Number of Songs 10
Number of Tracks 6 (5 Melody + 1 Style/Groove Creator)
Data Capacity Approx. 19,000 notes (when only “melody” tracks are recorded)
Recording Function Yes
Compatible Data Format Playback SMF (Formats 0 & 1)
Recording Original File Format (SMF 0 conversion function)
USB Audio Recorder
Recording Time (max.) 80 minutes (approx. 0.9 GB) per Song
Format Playback WAV (44.1 kHz, 16 bit, stereo)
Recording WAV (44.1 kHz, 16 bit, stereo)
Quick Sampling
Sampleing Type Normal, Oneshot, Loop
Samples (Preset/Usesr) 5
Sampling Time Approx. 9.6 sec
Sampling Sources AUX IN
Sampling Format Original File Format (16 bit, stereo)
Sampling Rate 44.1 kHz
Functions
USB audio interface 44.1 kHz, 16 bit, stereo
Registration Number of Buttons 4 (x 8 banks)
Overall Controls Metronome Yes
Tempo Range 11 – 280
Transpose -12 to 0, 0 to +12
Tuning 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
Scale Setting Yes
Miscellaneous PIANO Button Yes (Portable Grand Button)
Storage and Connectivity
Storage Internal Memory Approx. 1.73 MB
External Drives USB flash drive
Connectivity DC IN DC IN 12 V
AUX IN Yes (Stereo-mini)
Headphones x 1 (PHONES/ OUTPUT)
Sustain Pedal Yes
USB TO DEVICE Yes
USB TO HOST Yes (MIDI/Audio: 44.1 kHz, 16 bit, stereo)
Amplifiers and Speakers
Amplifiers 6 W + 6 W (When using PA-150 AC adaptor)
Speakers 12 cm x 2
Power Supply
Power Supply AC Adaptors (PA-150 or an equivalent recommended by Yamaha) or batteries (Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries)
Power Consumption 8 W (When using PA-150 AC adaptor)
Auto Power Off Function Yes
Accessories
Included Accessories Music Rest Yes
Song Book Download from website
