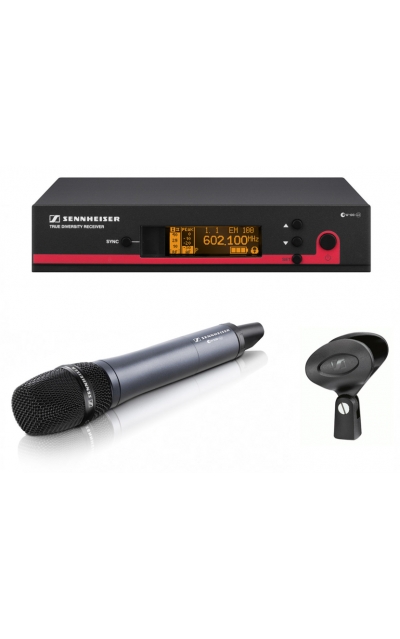

מערכת אלחוטית עם מיקרופון ידני מבית SENNHEISER, מקלט נייח, משדר דינאמי (קפסולה 945), ספק כוח, 2 אנטנות חיצוניות

(Frequency range 823 - 865 MHz (EMEA
(823 - 865 MHz (Americas, APAC
(780 - 822 MHz (EMEA
(780 - 822 MHz (Americas, APAC
(734 - 776 MHz (EMEA
(734 - 776 MHz (Americas, APAC
(626 - 668 MHz (EMEA
(626 - 668 MHz (Americas, APAC
(566 - 608 MHz (EMEA
(566 - 608 MHz (Americas, APAC
(516 - 558 MHz (EMEA
(516 - 558 MHz (Americas, APAC
Dimensions Receiver: 212 x 202 x 43 mm
Dimensions Transmitter: d= 50 mm, l= 265 mm
Frequency response (Microphone): 80.....18000 Hz
Transducer principle (Microphone): dynamic
Compander: HDX
Audio-XLR connector: 6,3 mm
Presets: 12
.Sound pressure level (SPL) 154 dB(SPL) max
%THD, total harmonic distortion < 0,9
Weight Receiver: 900 g
Weight Transmitter: 450 g
Pick-up pattern: cardioid
AF sensitivity: 2,5 mV/Pa
(Signal-to-noise ratio > 110 dB(A
RF frequency range: 516 ..... 865 MHz
RF output power: 30 mW
Transmission/receiving frequencies: 1680
Switching bandwidth: 42 MHz
Peak deviation: +/- 48 kHz
Operating time Transmitter: >8 h
Antenna connector: 2 BNC, 50 Ohm
Audio output level (balanced) XLR: +18 dBu max
Audio output level (unbalanced) Jack: +10 dBu max
