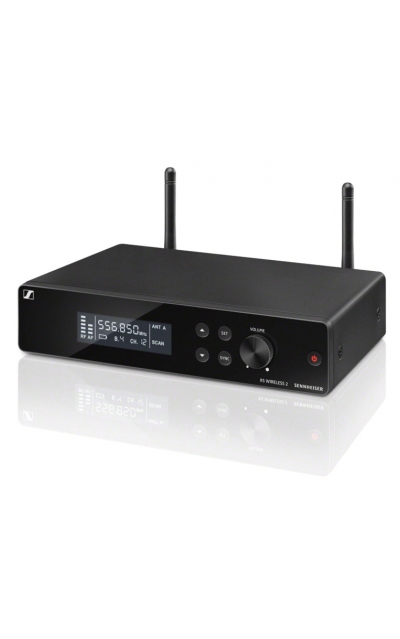

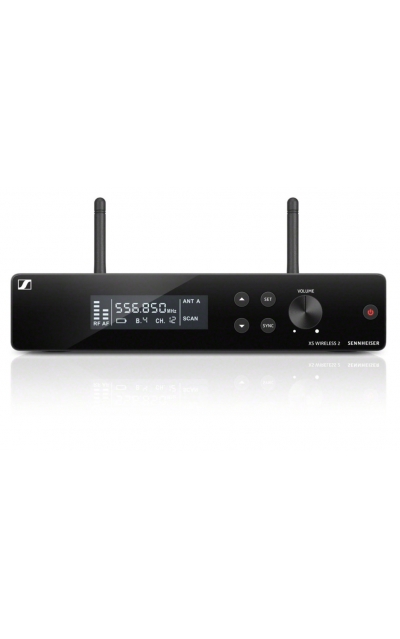

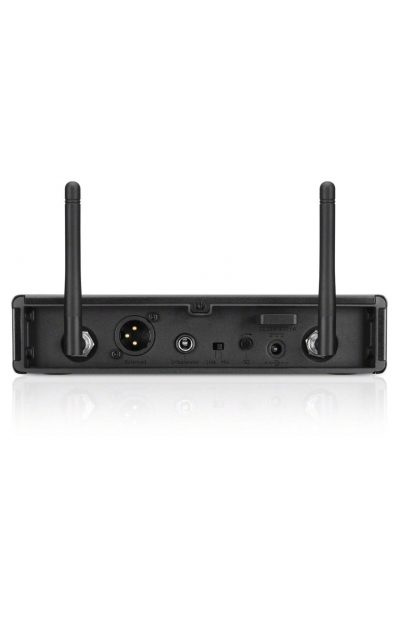

מקלט נייח מבית SEINNHEISER עם 2 אנטנות חיצוניות

Dimensions approx. 200 x 42 x 127 mm
Weight approx. 680g
Power supply 12 V DC nom. / 300 mA
Housing: Metal
(AF frequency response 50 to 16,000 Hz (–3 dB
Switching bandwidth up to 24 MHz
Modulation wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception: True Diversity
Frequency: 8 frequency banks, each with up to 12 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
(Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone
(Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 40 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
