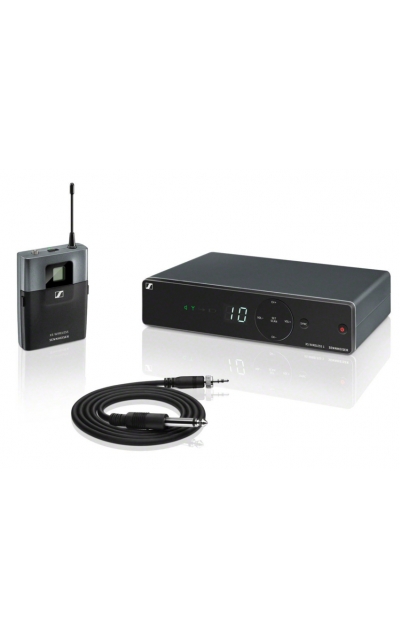

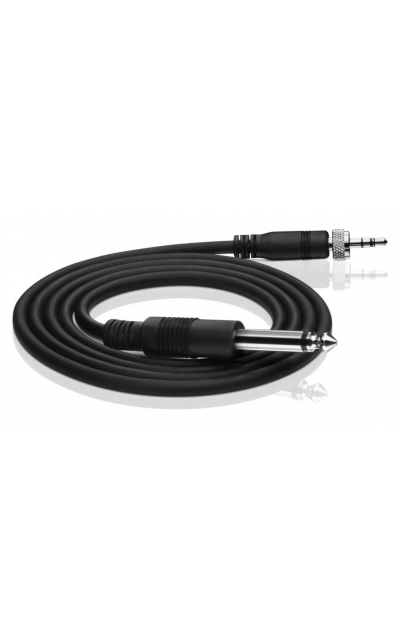

מערכת אלחוטית עם קבל ליין PL מבית SENNHEISER, מקלט נייח, משדר כיס, כבל ליין PL מונו גדול 6.3 מ"מ (גיטרה, כינור), ספק כוח, אנטנות פנימיות

Dimensions Receiver: approx. 200 x 42 x 127 mm

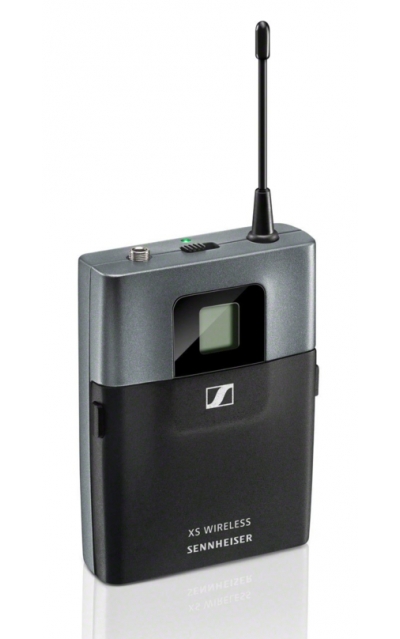

Bodypack transmitter: approx. 71 x 96 x 28 mm
THD, total harmonic distortion ≤ 0.9%
(Weight approx. 340g (receiver), approx. 95g (transmitter
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation Wideband FM
Power supply Receiver: 12 V DC nom. / 300 mA
Transmitter: 2 AA size batteries, 1.5 V
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing Rugged ABS housing
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation 130 dB
(Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone
(Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization
Input sensitivity 1.5 mV / Pa
(AF frequency response Receiver: 50 to 16,000 Hz (–3 dB
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas
