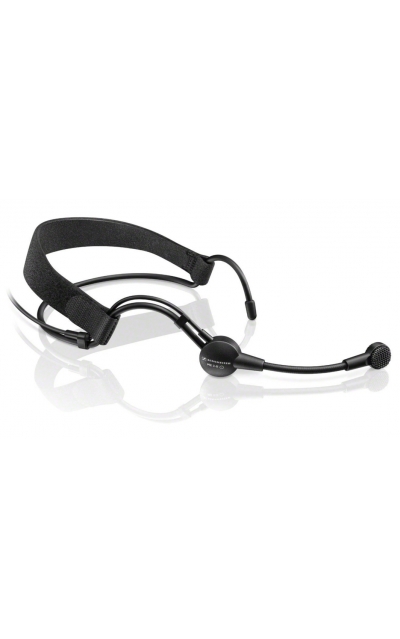

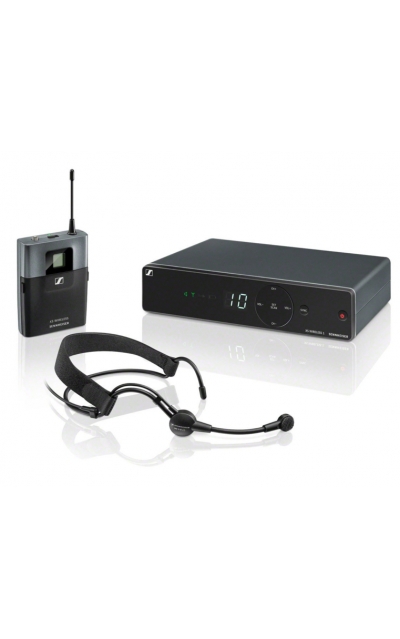

מערכת אלחוטית עם מדונה מבית SENNHEISER, מקלט נייח, משדר כיס, מדונה שחורה ME3, ספק כוח, אנטנות פנימיות

:Receivers

Dimensions approx. 200 x 42 x 127 mm
Weight approx. 340g
Power supply 12 V DC nom. / 300 mA
(AF frequency response 50 to 16,000 Hz (–3 dB

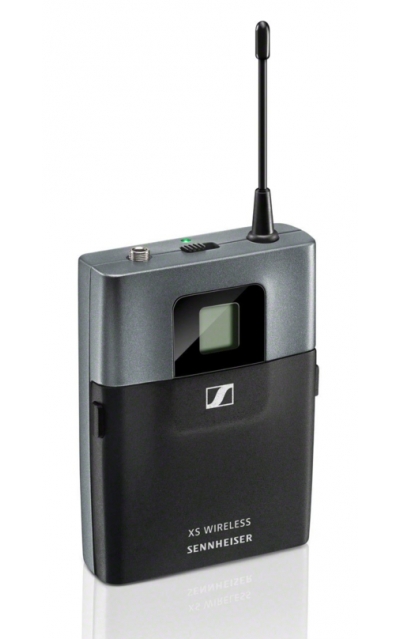

:Transmitter

Dimensions approx. 71 x 96 x 28 mm
Weight approx. 95g
Operating time Approx. 10 hrs
Power supply 2 AA size batteries, 1.5 V
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps

Microphone Condenser
THD, total harmonic distortion ≤ 0.9%
Pick-up pattern Cardioid
Signal-to-noise ratio ≥ 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Modulation Wideband FM
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing Rugged ABS housing
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz
Sensitivity < 3 μV at 52 dB(A)rms S/N
SPL for peak deviation 150 dB
(Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone
(Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization
Input sensitivity 1.5 mV / Pa
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range Operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: Double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas
