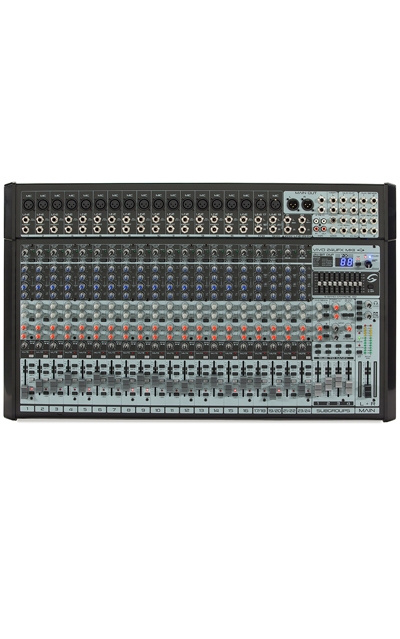

24 total inputs

16 mono channel, 4 stereo channels,4 Sub-groups

18 noiseless Mic preamp with +48v phantom power, gain control and lo-cut filter

Balanced inputs for low noise and signal integrity

2 AUX Sends (Pre or Post) and 2 FX sends (4 total indipendent sends)

3 band Eq with parametric filter on Mid Frequencies

24 bit digital Multi Effect Ambient Pro® Processor with 100 programs

2 Track-in assignable to MAIN

Adjustable Headphone monitor out and Control Room Out

9 band Graphic Eq on Master Out

Clip Led indicator and mute/solo function on each channel, 12 segment VU Meter on Master Out

Low latency USB I/O soundcard with USB input assignable to channel

Routing of each channel on MAIN, SUB 1-2, SUB 3-4 or SOLO mode

Rugged metal case for Live shows in the open air

High quality and precise 80 mm faders

SPECIFICATIONS

Dimensions (H x W x D) 105mm x 755mm x 445 mm

Weight 10,4 Kg

Power Supply 100 -240 V~, 50/60 Hz

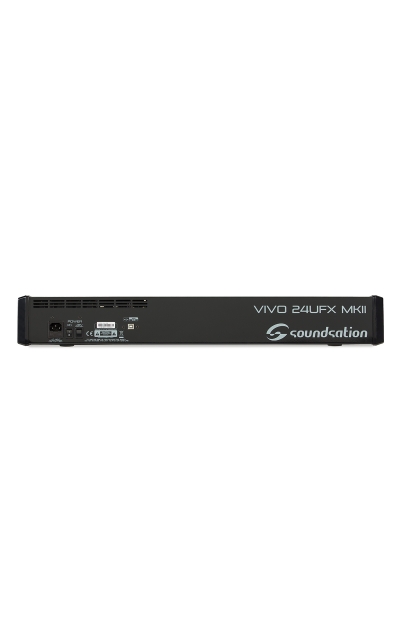

Mains connection Standard IEC receptacle

Fuse 100 -240 V~, T 1.6 A L 250V

Frequency response 10Hz - 55 kHz +/- 3 dB

THD+N 0.0005% @ +4dBu, 1 kHz

S/N Ratio 115 dB

Sensitivity range from +15 dBu to -35 dBu

DSP effect A/D and D/A with 24 bit sample ratio

MIC input impedance 1,4 KOhm

INSERT impedance 2,5 KOhm

All other inputs impedance >10KOhm

LO-CUT filter 75 Hz, 18 dB/oct.

HI filter +/- 15 dB @ 12KHz

MID filter +/- 15 dB frequency response 100Hz-8kHz

LO filter +/- 15 dB @ 80 Hz

HI-MID and LO-MID filter (Stereo Channels) +/- 15 dB @3kHz and +/- 15 dB @ 500 Hz
