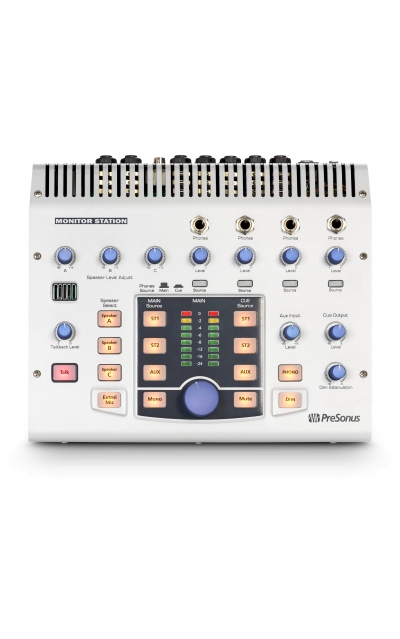

קונטרולר מוניטורים לאולפן
Audio Inputs
|
|
Talkback Microphone |
|
|
Gain Range |
+15 to +55 dB |
|
Internal Microphone |
|
|
Type |
electret condenser |
|
Sensitivity |
-42 dB |
|
External Input |
|
|
Type |
XLR Female Balanced |
|
Input Impedance (Balanced) |
1200Ω |
|
Maximum Gain |
50 dB |
|
Maximum Input Level |
-10 dBu |
|
Frequency Response |
10 Hz to 40 kHz, ±1 dB |
|
Stereo 1 and Stereo 2 Inputs |
|
|
Type |
¼” TRS Active Balanced |
|
Input Impedance (Balanced) |
10 kΩ |
|
S/N Ratio (1 kHz @ +10 dBu, Unity Gain) |
>105 dB |
|
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) |
<0.0075% |
|
Frequency Response (±0.5 dB) |
10 Hz to 65 kHz |
|
Noise Floor (20 Hz to 20 kHz, 150Ω input termination) |
-96 dBu |
|
Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N) |
+22 dBu |
|
Auxiliary Inputs |
|
|
Type |
RCA Active Unbalanced |
|
Input Impedance |
47 kΩ |
|
S/N Ratio (1 kHz @ 0 dBu, Unity Gain) |
>115 dB |
|
THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain) |
<0.01% |
|
Frequency Response (±0.5 dB) |
10 Hz to 50 kHz |
|
Gain Range |
80 dB to +10 dB |
|
Phono Mode Gain |
32 dB @ 1 kHz |
|
Phono Mode THD+N |
<0.05% |
|
Phono Mode Noise Floor (40 dB gain, inputs shorted) |
-72 dBu |
|
Input Meters (ST1, ST2, and Aux only) |
|
|
Type |
Dual 8-segment LED w/peak hold |
|
Sensitivity Range |
-24 dB to 0 dB |
Audio Outputs
|
|
Type |
¼” TRS Active Balanced |
|
Output Impedance (Balanced) |
51Ω |
|
THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain) |
0.003% |
|
Frequency Response (±0.5 dB) |
10 Hz to 50 kHz |
|
Speaker A, B, and C |
|
|
Trim Range |
-80 dB to 0 dB |
|
Main Level Range |
-80 dB to 0 dB |
|
Dim Attenuation Range |
-30 dB to -6 dB |
|
Cue |
|
|
Main Level Range |
-80 dB to 0 dB |
|
Dim Attenuation (Talkback activated) |
-20 dB |
|
Headphones |
|
|
Type |
¼” TRS Active Stereo |
|
Maximum Output (60Ω load) |
150 mW / channel |
|
Frequency Response (±1.0 dB) |
10 Hz to 50 kHz |
|
Power |
|
Power Supply Type |
External AC Transformer/Internal Line |
|
Input Connector Type |
Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter |
|
Monitor Station Input Voltage Range |
16 VAC |
|
Power Requirements (Continuous) |
10W |
Physical
|
|
Dimensions |
Desktop unit |
|
Height |
3” (76.2 mm) |
|
Depth |
8.75” (222.25 mm) |
|
Width |
9.5” (241.3 mm) |
|
Weight |
10 lbs. (4.54 kg) |
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein at any time, without notification.
|
|
