Analog Inputs
4 x Stereo Pair Line Level Inputs. Ch1 on XLR & Ch2-4 on TRS

4 x Stereo Line Level Inputs on D-Sub 25

1 x Talkback Mic Preamp on TRS

Analog Outputs
4 x Stereo Line Level Outputs on D-Sub 25

4 x Stereo Pair Monitor Outputs, Mon1 on XLR and Mon2-4 on TRS

1 x Line Level Stereo Sum Output on TRS

1 x LFE Output on TRS

4 x Headphone Outputs (two on the rear and two on the front) on TRS

USB I/O
USB 2.0 Hi-Speed, Type B

For use with the software control panel

Dynamic Range
132dB

THD + N
127dB

Operating temperature
0-50° C / 32-122° F

Weight
~2kg / 4,4lb approx.

Dimensions
Width: 483 mm / 19” /Rack/

Height: 44 mm(1U) / 1,75”

Depth: 220 mm / 8,66”

Power Supply
AC Universal input ~95-245 V

Power Consumption
25 Watts Max.

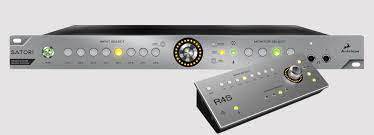

Satori – Overview

Satori – Basic information
