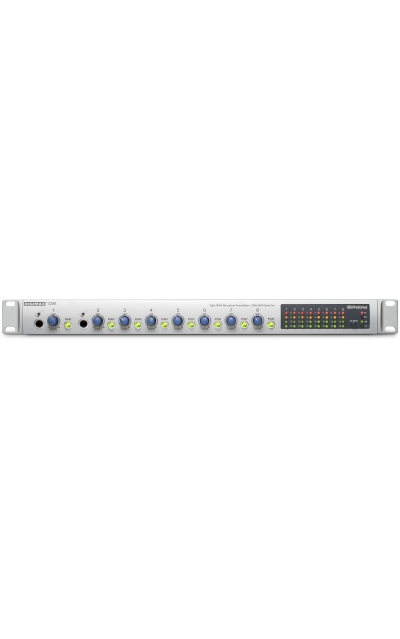

קדם מגבר שמינייה PRESONUS DigiMax D8
|
|
שמיניית קדם מגבר
Inputs
|
|
Input Type |
XLR Female Balanced |
|
Frequency Response (±0.5 dB) |
20 Hz to 50 kHz |
|
Frequency Response (±3.0 dB) |
20 Hz to 150 kHz |
|
Input Impedance (Balanced) |
1600Ω |
|
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) |
< 0.003% |
|
EIN (unwtd, 55 dB Gain, 150Ω Input, 20 Hz to 22 kHz) |
-126 dBu |
|
S/N Ratio (Unity Gain, unwtd, Ref. = +4 dBu, 20 Hz to 22 kHz) |
>101 dB |
|
Common Mode Rejection Ratio (1 kHz, 55 dB Gain) |
> 55 dB |
|
Gain Control Range (±1 dB) |
-4 dB to 50 dB |
|
Maximum Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) |
+14 dBu |
|
Signal Level LEDs |
+10 dBu (0 dBFS) |
|
Red/Clip (±0.5 dBu) |
+4 dBu (-6 dBFS) |
|
Yellow (±0.5 dBu) |
-8 dBu (-18 dBFS) |
|
Green (±0.5 dBu) |
-14 dBu (-24 dBFS) |
|
Phantom Power (±2 VDC) |
+48 VDC |
Instrument Input (channels 1 and 2 only)
|
|
Type |
¼” TRS Female Unbalanced |
|
Input Impedance |
1 MΩ |
Line Outputs
|
|
Type |
¼” TRS Balanced |
|
Output Impedance |
51Ω |
Digital Audio
|
|
ADC Dynamic Range (A-wtd, 48 kHz sample rate) |
107 dB |
|
Bit Depth |
24 |
|
Reference Level for 0 dBFS |
+10 dBu |
|
Internal Sample Frequency, Selections |
44.1, 48 kHz |
|
External Sample Frequency, Input |
75Ω BNC |
Power
|
|
Input Connector Type |
IEC |
|
Input Voltage (factory configured) |
90 to 230 VAC |
|
Power Requirements (Continuous) |
20W |
Physical
|
|
Dimensions |
1U rackmount |
|
Height |
1.75” (44.45 mm) |
|
Depth |
7” (177.8 mm) |
|
Width |
19” (482.6 mm) |
|
Weight |
6 lbs. (2.72 kg) |
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein at anytime, without notification.
|
|
|
|
|
|
|
