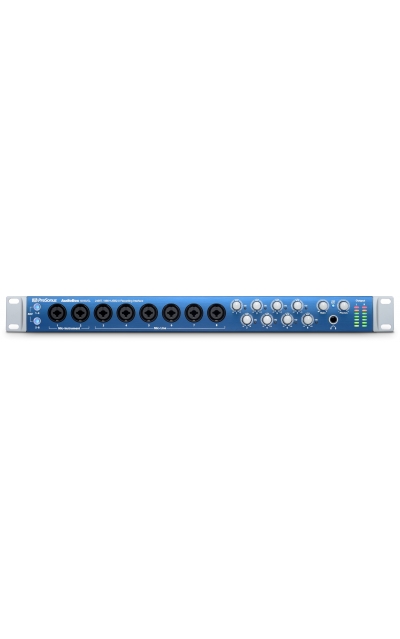

כרטיס קול 8 ערוצים
Microphone Inputs
|
|
Connector Type |
Combo, XLR, female, balanced |
|
Mic Preamp EIN |
-133 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd |
|
Frequency Response |
20 Hz - 22 kHz, ±0.25 dB, unity gain |
|
THD+N |
0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd |
|
S/N Ratio |
97 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd |
|
Gain Control Range |
-15 dB to +65 dB |
|
Input Max Headroom |
+16 dBu, < 0.5% THD |
|
Input Impedance |
1.7 kΩ |
|
Phantom Power |
+48 VDC, 32 mA total unit |
Line Inputs
|
|
Connector Type |
Combo, ¼” TRS, female, balanced |
|
Frequency Response |
20 Hz - 22 kHz, ±0.25 dB, unity gain |
|
THD+N |
0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd |
|
S/N Ratio |
98 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd |
|
Gain Control Range |
-20 dB to +20 dB |
|
Input Max Headroom |
+21 dBu, < 0.5% THD |
|
Input Impedance |
10 kΩ |
Instrument Inputs
|
|
Connector Type |
Combo, ¼” TS, female, unbalanced |
|
Frequency Response |
20 Hz - 22 kHz, ±0.25 dB, unity gain |
|
THD+N |
0.003%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd |
|
S/N Ratio |
89 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd |
|
Gain Control Range |
-30 dB to +50 dB |
|
Input Max Headroom |
+21 dBu, < 0.5% THD |
|
Input Impedance |
1 MΩ |
Analog Outputs
|
|
Connector Type |
¼” TRS, female, impedance balanced |
|
Frequency Response |
20 Hz - 22 kHz, ±0.25 dB |
|
THD+N |
0.003%, 1 kHz, 22 kHz BW, A-wtd |
|
S/N Ratio |
109 dB, 1 kHz, 22 kHz BW, A-wtd |
|
Output Level |
+10 dBu, <0.5% THD |
|
Output Impedance |
51Ω |
Headphone Outputs
|
|
Connector Type |
¼” TRS, female, stereo |
|
Maximum Power |
120 mW/ch @ 60Ω load |
|
Frequency Response |
20 Hz - 20 kHz, ±0.5 dB, max gain |
|
THD+N |
0.01%, 1 kHz, max gain, 20 kHz BW, A-wtd |
|
S/N Ratio |
96 dB, 1 kHz, max gain, 20 kHz BW, A-wtd |
Digital
|
|
ADC Dynamic Range |
114 dB, 48 kHz, A-wtd |
|
DAC Dynamic Range |
114 dB, 48 kHz, A-wtd |
|
Host Interface |
USB 2.0 high-speed |
|
Bit Depth |
24-bit |
|
Sample Rates |
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
|
Maximum Latency |
6 mS, analog input to analog output |
|
ADAT Optical I/O |
Toslink™ connectors, ADAT/SMUX formats |
|
S/PDIF I/O |
RCA female connectors |
|
Word Clock Output |
BNC connector, 4.5 Vpp @ 75Ω load |
|
MIDI I/O |
5-pin DIN connectors |
Power
|
|
External Power Adapter |
+18 VDC, 2.6A, center-positive |
|
Connector Type |
Barrel: 5.5 mm OD, 2.1 mm ID, 9.5 mm length |
Physical
|
|
Dimensions |
1U rackmount |
|
Height |
1.75” (44.45 mm) |
|
Depth |
5.5” (139.7 mm) |
|
Width |
19” (482.6 mm)
|
|
Weight |
4.6 lb. (2.1 kg) |
NOTE: As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein at any time, without notification.
|
|
|
